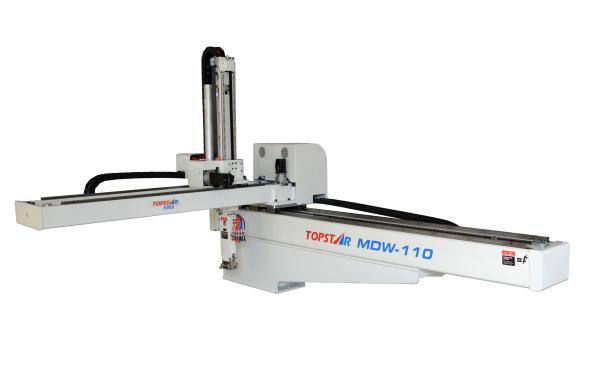

Customized Product High Efficiency Traverse Telescopic Manipulator /Mechanical Arm/Robotic Arm MDW-110
Standard function
Packaging motion(Max. 256 points)
Posture control during traverse
Posture midway descent at release side
Ejector link
Defective product reject circuit
Initial defective product reject circuit
Free packaging motion(115 points×2 stages)
Forward and rotate at removing side
Down-standby
Midway runner release(Move,Revert)
Runner release within mold
Vacuum confirmation unit ( 2 circuit)
Outside safety door area standby
Undercut extract circuit
Start signal of conveyor
Internal memory(for Ma100 molds)
Lock function of setting value
Extraction from fixed mold
Two language exchange(Chinese/English)
| Outer Dimension | MDW-110 | MDW-110S | OptionFunction |
| A | Overall High | 1930(2050)mm/1930mm | Option function
Air nipple circuit in gripper
NT runner cutting
Vacuum confirmation unit ( 4 circuits)
Product gripping 4 circuits
Mold close during ascend
Rotation unit
Ejector return link EuroMAP12 EuroMAP67 |
| B | Overall Length | 2805/3285mm |
| C | Traverse Stroke | 2000/2500mm |
| D | Main-Arm vertical stroke | 1500/1700mm |
| E | Main-Arm vertical stand by | 200mm |
| F | Bottom of Crosswise to chuck mount position | 445mm |
| G | Base side face Box end | 470mm |
| H | Sub arm vertical standby | -- | 250mm |
| I | Main arm reach Max | 1300mm |
| J | Main arm crosswise stroke Max | 1125mm | 960mm |
| K | Main arm crosswise standby min | 175mm | 340mm |
| L | Main/sub arm proximity min | -- | 220mm |
| M | Sub arm crosswise stroke Max | -- | 960mm |
| N | Sub arm crosswise standby min | -- | 120mm |
| O | Crosswise arm end-box end | 210mm |
Assembly work shop
Application customer factory:
Main Features of Best Quality Take Out Robot
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
1.All three axis driven by powerful AC servo motor,high stability, fast, compact,heavy duty.
2.Very compact vertical telescopic arm for low overall height and double speed for short in/out time.
3.The integrated control cabinet is mounted behind the horizontal axis for saving valuable space.
4.The integrated control cabinet allows electrical connection of external I/O modules for additional peripheral equipment,like conveyor belt,vibration plate.
5.Additional A&B axis are available while C-axis is the standard one, for flexibilities of placing the parts in different orientation.
6.Additional arm is available for the removal of sprues from 3-plate molds.
7.Additional arm is available for the removal of parts from stake molds.
Package Detail:
♦Outside package:Standard plywood package.
♦Inner package:Stretchy film and plastic film for humidity.
♦Also we can package according to your requests.
Delivery Detail:
♦For standard machines,it will be 7-15 working days after payment
♦For non-standard machines and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
Our Serve
Pre-Sales Service:
♦Inquiry and consulting support.
♦Detailed professional product quotation
♦View our Factory.
After-Sales Service
♦Training how to instal the machine, training how to use the machine.
♦Engineers available to service machinery overseas.
♦Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
♦Provide english version manual and operation video CD disk.
♦1 year guarantee for whole machine.
♦If you need any component of the machine,we will provide the best price for you.
